Ground Control Systems (GCS)

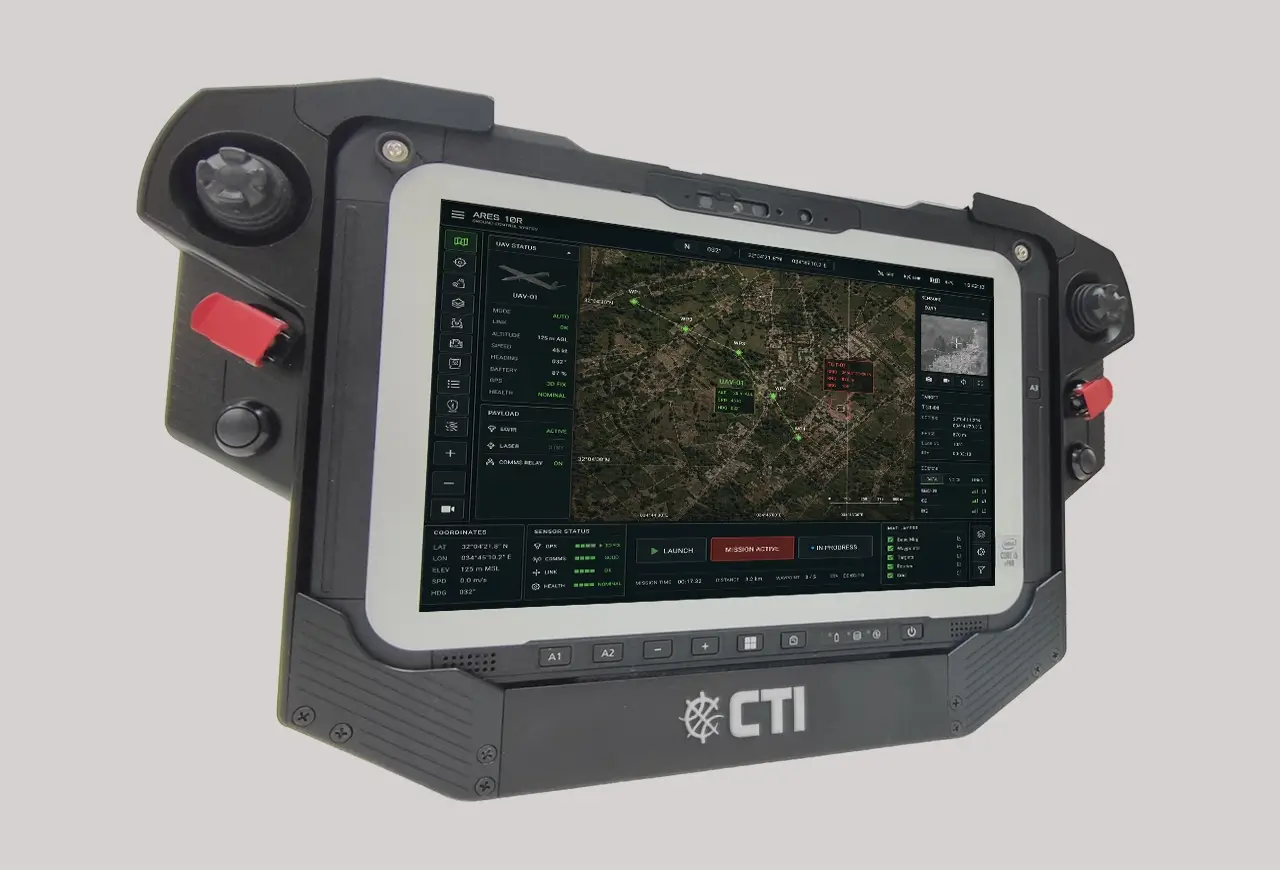

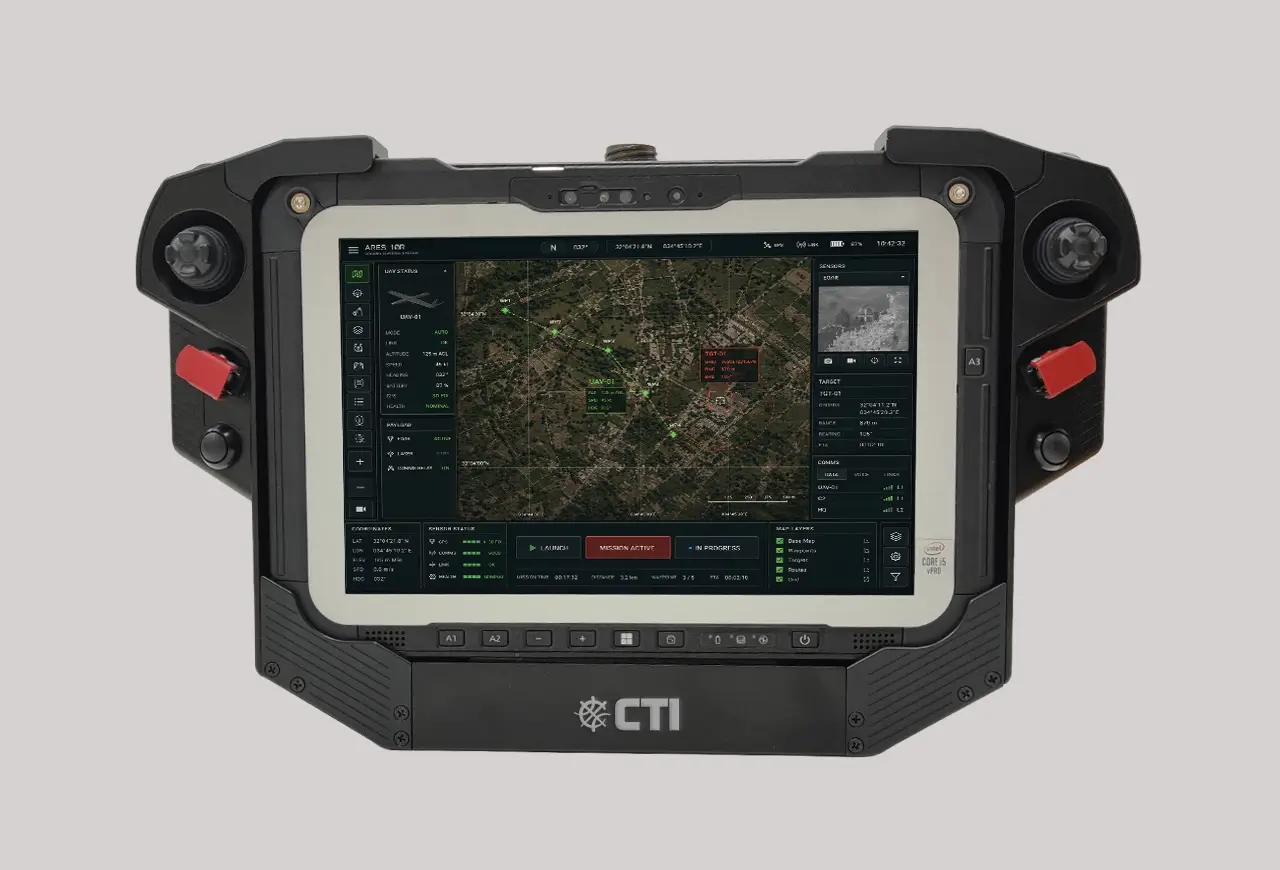

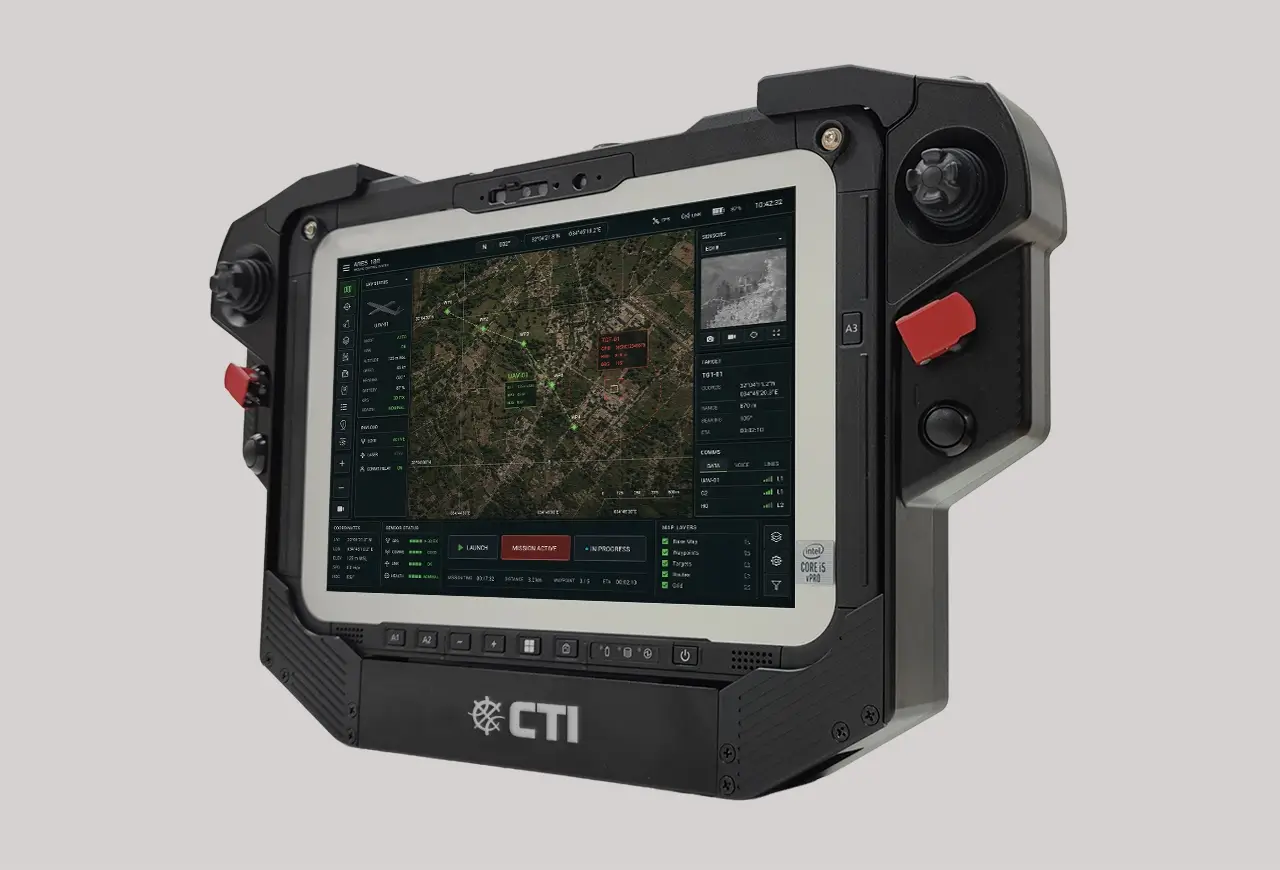

Ares 10R

Compact Ground Control System, Panasonic FZ-G2 Based

The Ares 10R is a compact, mission-ready ground control system designed for hands-on tactical operations. Engineered for harsh environments, it delivers precise control through integrated joysticks, ensuring reliable and responsive mission execution in dynamic field conditions.

Request a quote

Inquire Datasheet

Showing Slide 1 of 3

Mission-Ready Tactical Core

Specific engineering solutions designed to survive the modern battlefield.

Integrated Control Interface

The Ares 10R is a compact, mission-ready control system designed for hands-on tactical operations. Built-in joysticks and push-buttons enable precise, real-time operation for UAV and robotic systems.

Compact & Tactical Design

Lightweight and compact form factor optimized for mobility in dynamic operational environments.

Rugged Mission Performance

Fully compliant with MIL-STD and IP65 standards, ensuring reliable operation under harsh environmental conditions.

Field Applications

The Ares 10R is designed for real-world, mission-critical field operations. Combining rugged durability with integrated control interfaces, it enables precise, hands-on operation for UAV and robotic systems in dynamic and high-intensity environments. the Unit integrated with Gate ESAD.

UAV / UAS

UGV / Robotics Operations

Command & Control App

Drones

Loitering Munitions

Technical Specifications

Ares 10R Detailed Data

Specification	Value
OS	Windows 10 Pro (64-bit) / Win 11 Pro
CPU	Intel Core U5-135U vPro
Memory	16GB, 32GB LPDDR5
Storage	512GB, 1TB, 2TB Opal NVMe SSD
Display	10"

Specification	Value
High/Low Temperature	-29°C to +60°C operating
Humidity	MIL-STD-810
Vibration	MIL-STD-810
Mechanical Shock	MIL-STD-810
Sand & Dust	MIL-STD-810
Rain	MIL-STD-810
EMI/RFI	MIL-STD-461G
Ingress Protection	IP65

Specification	Value
Vehicle Standard	MIL-STD-D38999
Power Input	16 VDC input
Ethernet	10/100/1000 Mbps
Serial/Video	---
Expansion	USB 2.0 / USB3.0

Specification	Value
Joysticks	2× Joysticks (APEM)
Push Buttons	6× Push-buttons (OTTO)
Guard	2× Flip Guards
