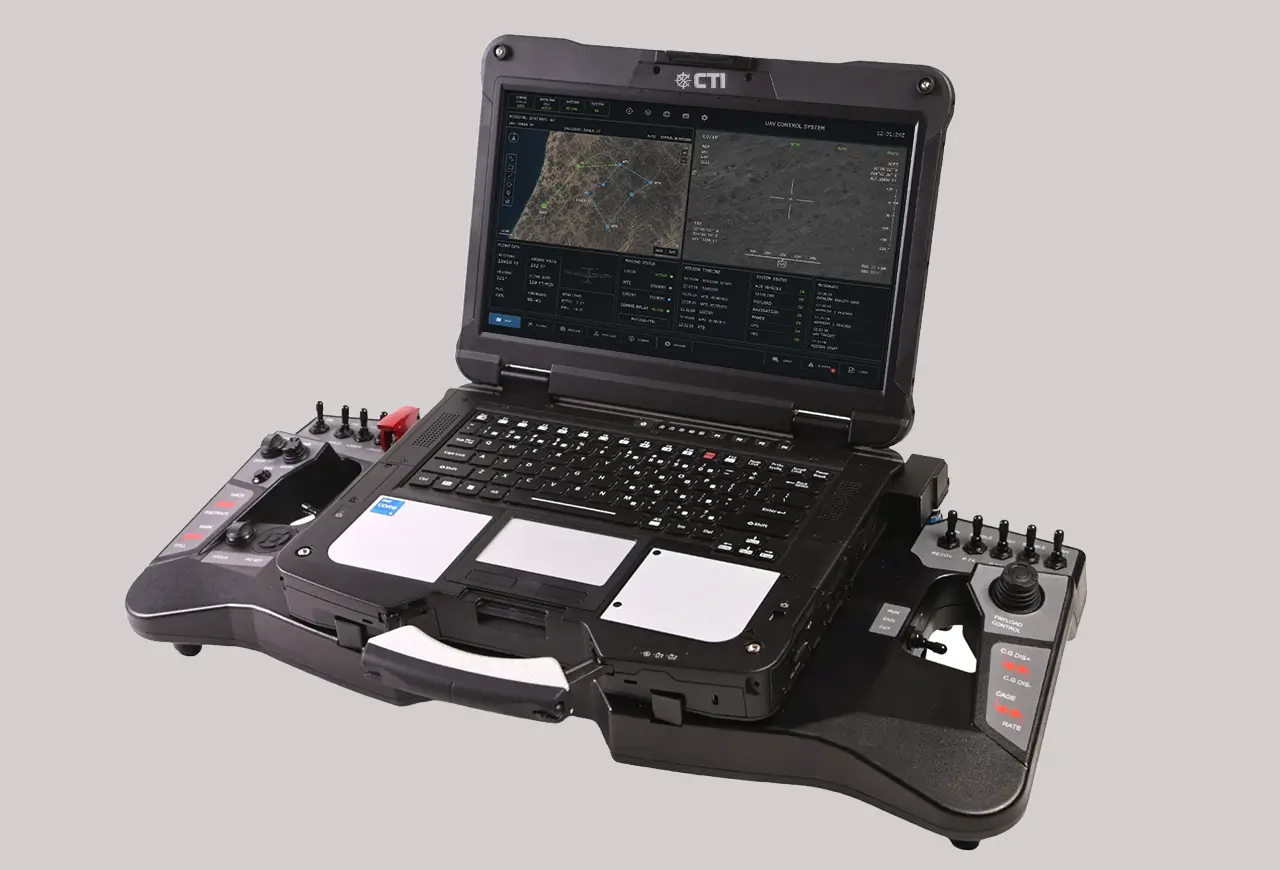

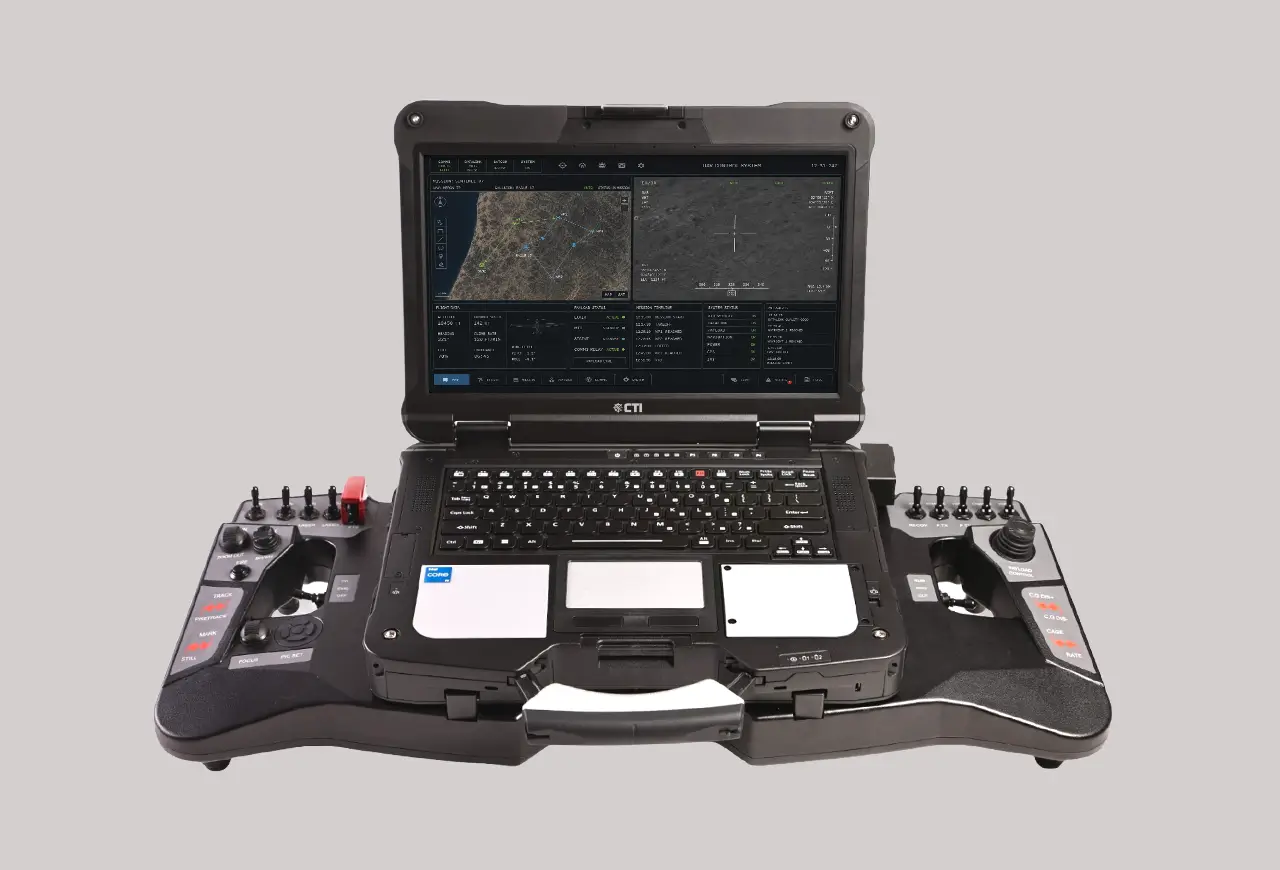

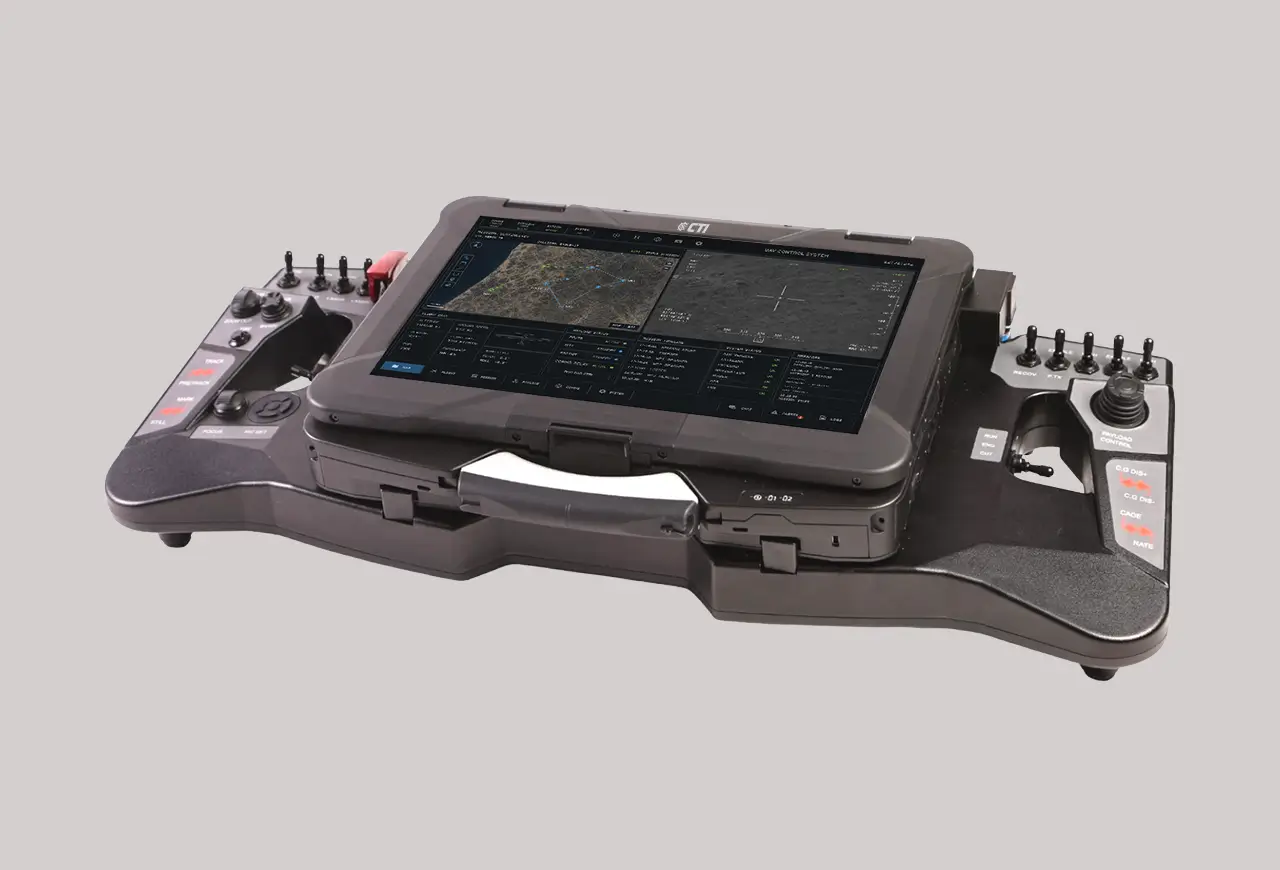

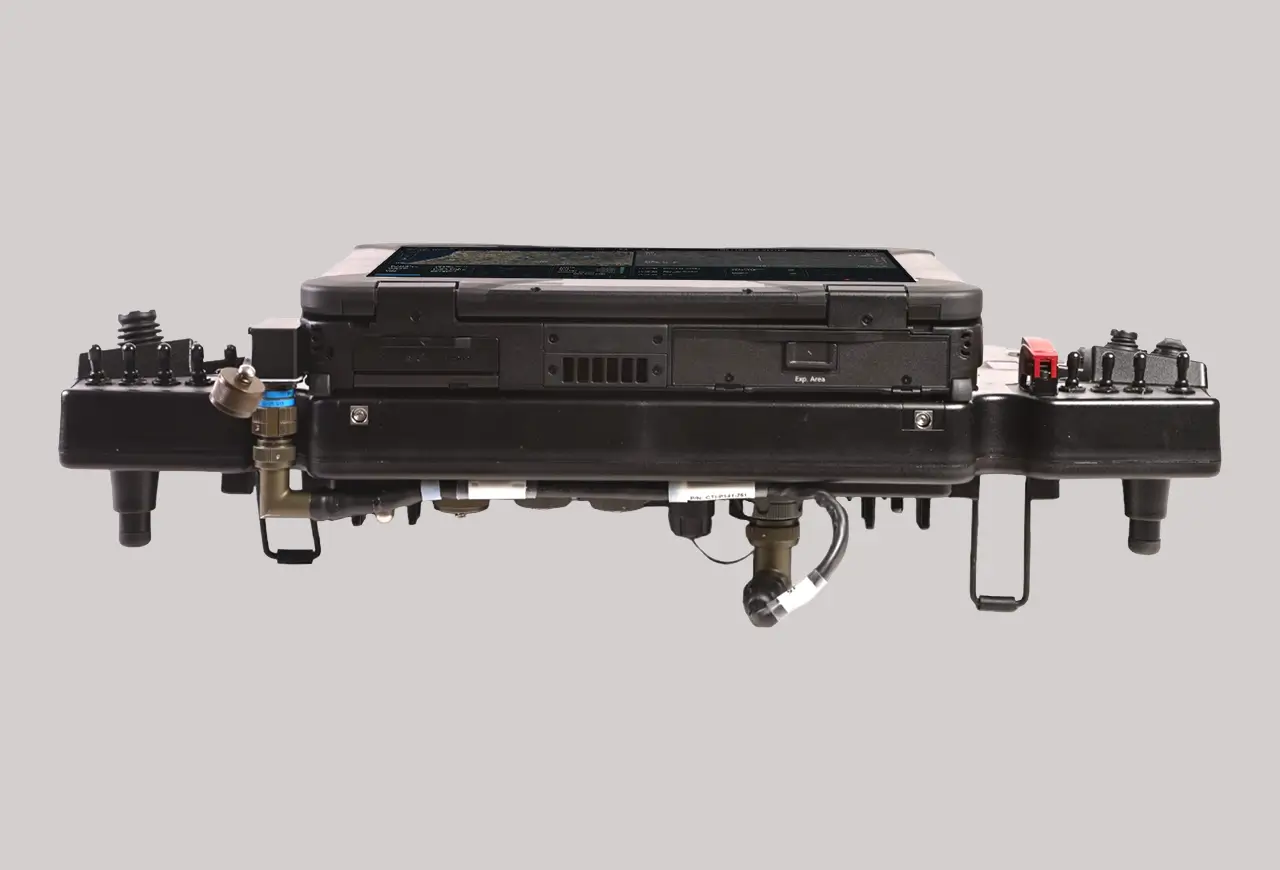

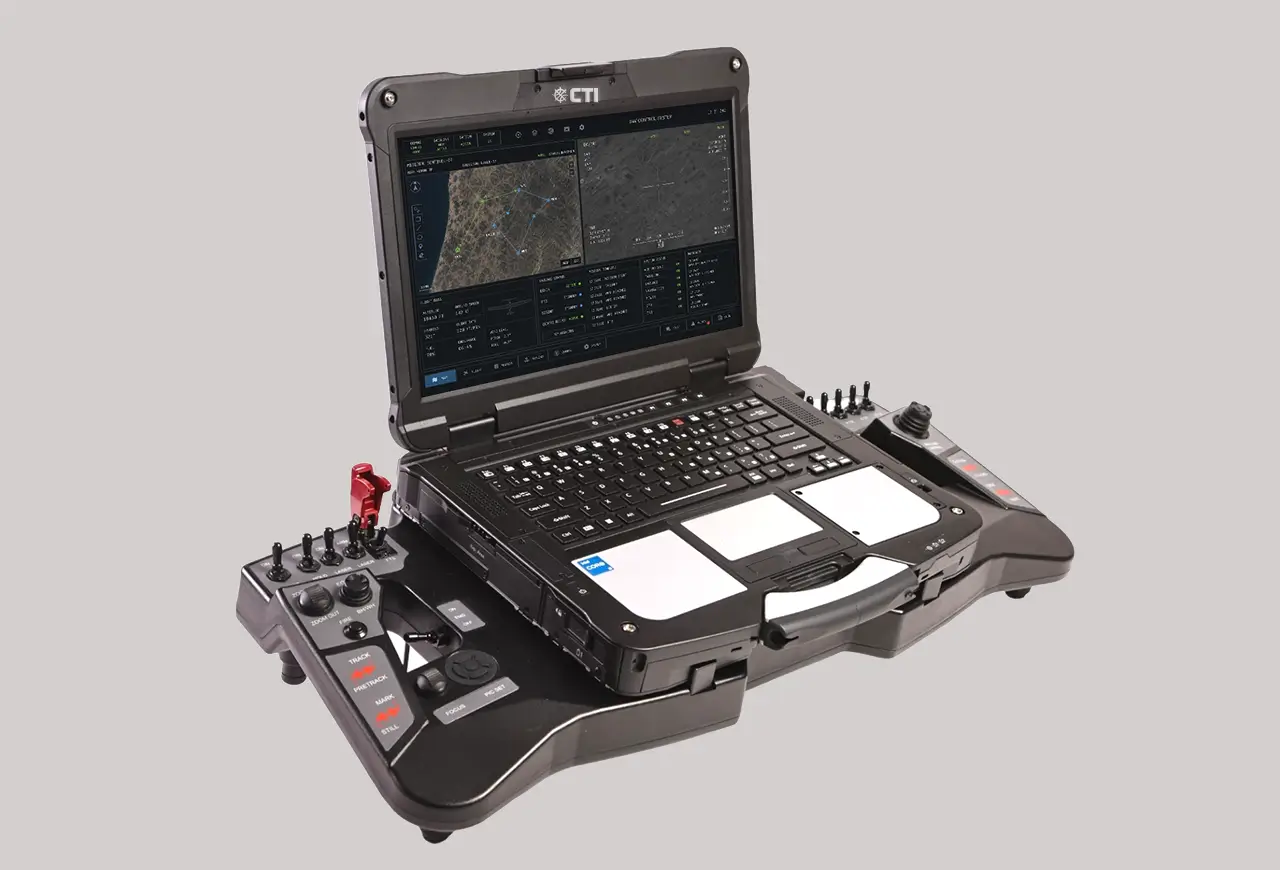

Ares 40

High-Performance Ground Control System, Panasonic FZ-40 Based

The Ares 40 is a high-performance, mission-ready ground control system designed for complex and high-demand operations. Engineered for harsh environments, it delivers advanced computing power and full-scale control capabilities on a rugged laptop-based platform.

Request a quote
Inquire Datasheet
ares-40-01
ares-40-02
ares-40-03
ares-40-04
ares-40-05

Mission-Ready Tactical Core

Specific engineering solutions designed to survive the modern battlefield.
High-Performance Computing
The Ares 40 is a high-performance, mission-ready system built on a Panasonic FZ-40 rugged laptop platform, delivering advanced processing capabilities for complex mission operations.
Advanced Control Interface
Equipped with dual joysticks, push-buttons, and toggle switches for precise and intuitive real-time control.
Mission-Ready Ruggedization
Fully compliant with MIL-STD and IP65 standards, ensuring reliable operation in extreme environments.

Field Applications

The Ares 40 is designed for real-world, mission-critical operations. Combining high-performance computing with advanced control capabilities, it serves as a powerful platform for managing complex, multi-system missions in demanding operational environments.
UAV / UAS
UGV / Robotics Operations
Command & Control App
Drones
Loitering Munitions

Technical Specifications

Ares 40 Detailed Data
System Performance
SpecificationValue
OSWindows 10 Pro (64-bit) / Win 11 Pro
CPUIntel Core i7-1185G7 vPro
Memory16GB–64GB DDR4
Storage512GB, 1TB, 2TB Opal NVMe SSD
Display14"
Durability
SpecificationValue
High/Low Temperature-29°C to +60°C operating
HumidityMIL-STD-810G
VibrationMIL-STD-810G
Mechanical ShockMIL-STD-810G
Sand & DustMIL-STD-810G
RainMIL-STD-810G
EMI/RFIMIL-STD-461G
Ingress ProtectionIP65
Interfaces
SpecificationValue
Vehicle StandardMIL-STD-D38999
Power Input16–32 VDC input
Ethernet8 x 1Gbps
Serial/Video1 x RS-232, 2 x RS-422, Optical Fiber, Discretes, USB2.0
Expansion---
Control Devices
SpecificationValue
Joysticks2 x Joysticks
Push ButtonsSeveral Push-Buttons
GuardSeveral Toggle Switches

Related Products

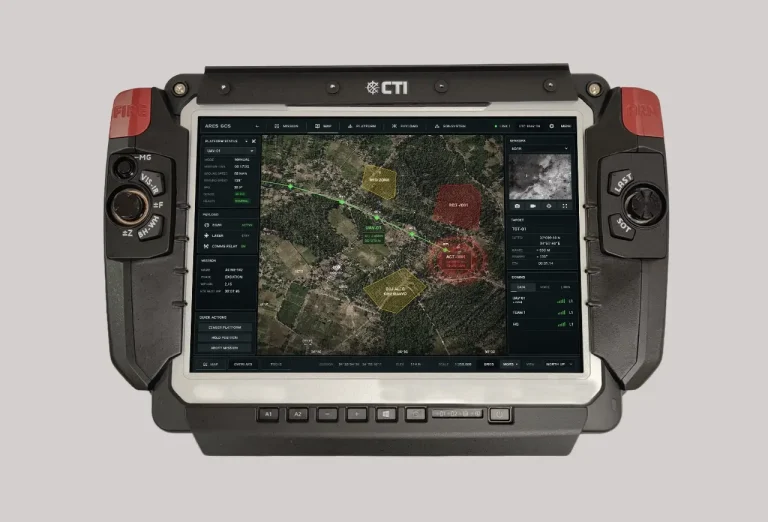

Ares 12H
Ground Control Systems (GCS)

The Ares 12H is a compact, mission-ready GCS platform designed for demanding defense and homeland security operations. Engineered for harsh...

Learn More

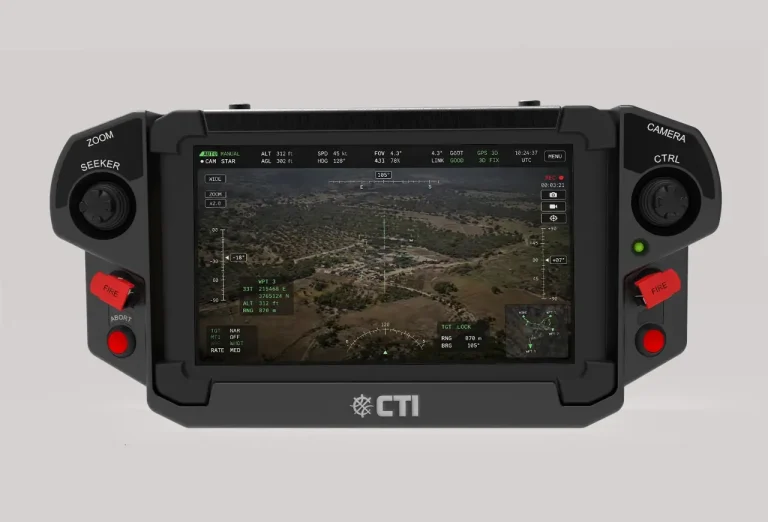

Ares 8S
Ground Control Systems (GCS)

The Ares 8S is an ultra-compact, mission-ready ground control system designed for mobile and agile operations. Engineered for harsh environments,...

Learn More

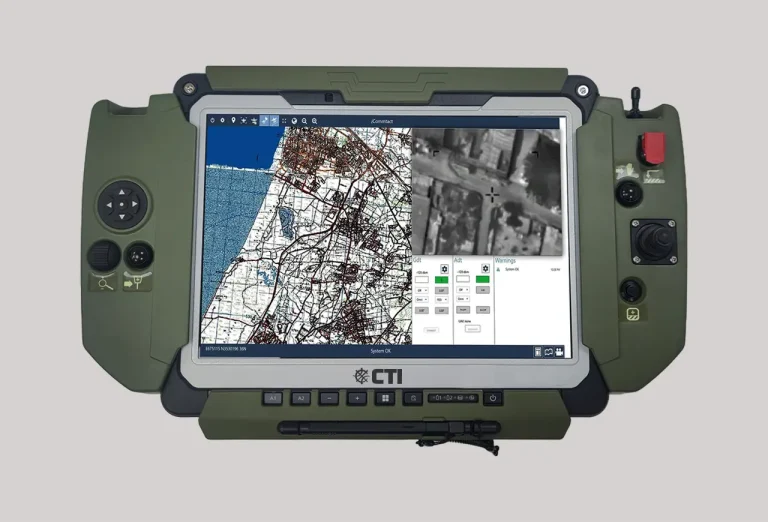

Ares 12R
