RAAM-A

Ruggedized Ethernet Switches for APC & Defense Applications

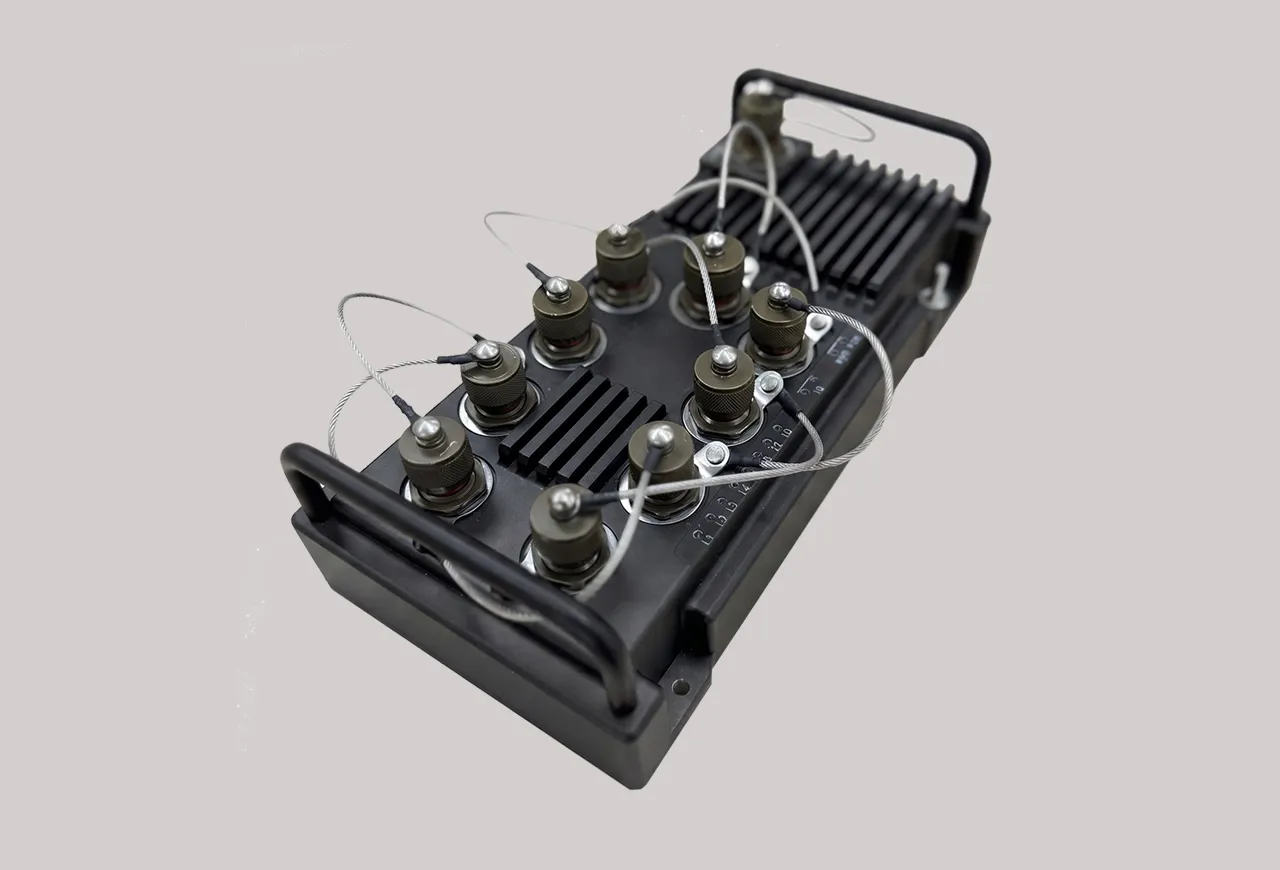

Ruggedized Ethernet Switch is a high-performance, mission-ready networking solution designed for demanding military, defense, vehicle, and industrial environments. It provides reliable and secure Ethernet connectivity for connecting mission computers, sensors, displays, radios, cameras, and other networked systems.

Request a quote
Inquire Datasheet
raam-a-02

Key Benefits

Rugged Networking. Mission-Critical Performance.
Ruggedized Ethernet switch can be customized to meet specific platform requirements, including power input, Ethernet port configuration, connector type, network architecture, environmental specifications, and cybersecurity requirements.
Ruggedized Ethernet Switches for Combat Vehicles
Designed for operation in harsh environments, the switch features a ruggedized mechanical enclosure, high resistance to shock and vibration, and protection against dust and water ingress. It can be integrated into armored vehicles, tactical platforms, command-and-control systems, and other mission-critical applications.

Field Applications

UAV / UAS
UGV / Robotics Operations
Command & Control App
APC

Technical Specifications

RAAM-A Detailed Data
Connectivity & Interfaces
SpecificationValue
Ethernet8x10/100 POE + 1x10/100/1000
Deployment & Integration
SpecificationValue
Form FactorSystem-level computer
Power Input18V-40V
Power Consumption30W, Total POE budget 180W
MountingVESA
Ruggedization & Environment
SpecificationValue
Temperature-45°C to 85°C
MIL-STD810G / 461F
IP RatingIP65
ChassisAluminum
Dimension270mm x 133mm x 75.1mm (LxWxH)
