• Ground Control Systems (GCS)

Ares 12H

Rugged & Tactical - Ares 12" Windows-Based

The Ares 12H is a compact, mission-ready GCS platform designed for demanding defense and homeland security operations. Engineered for harsh environments, it delivers high performance, reliability, and operational flexibility in a lightweight and portable form factor.

Request a quote
Inquire Datasheet

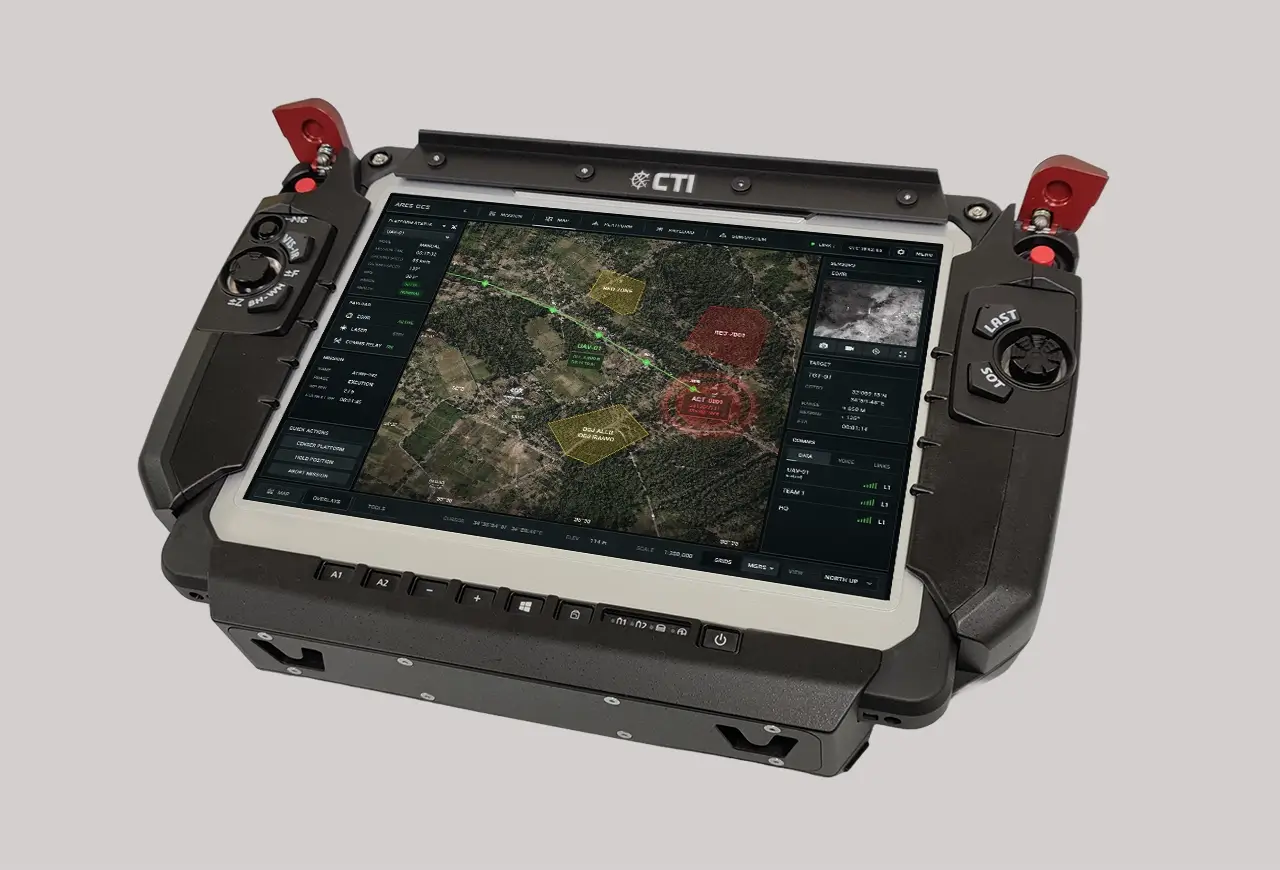

ares-12h-02

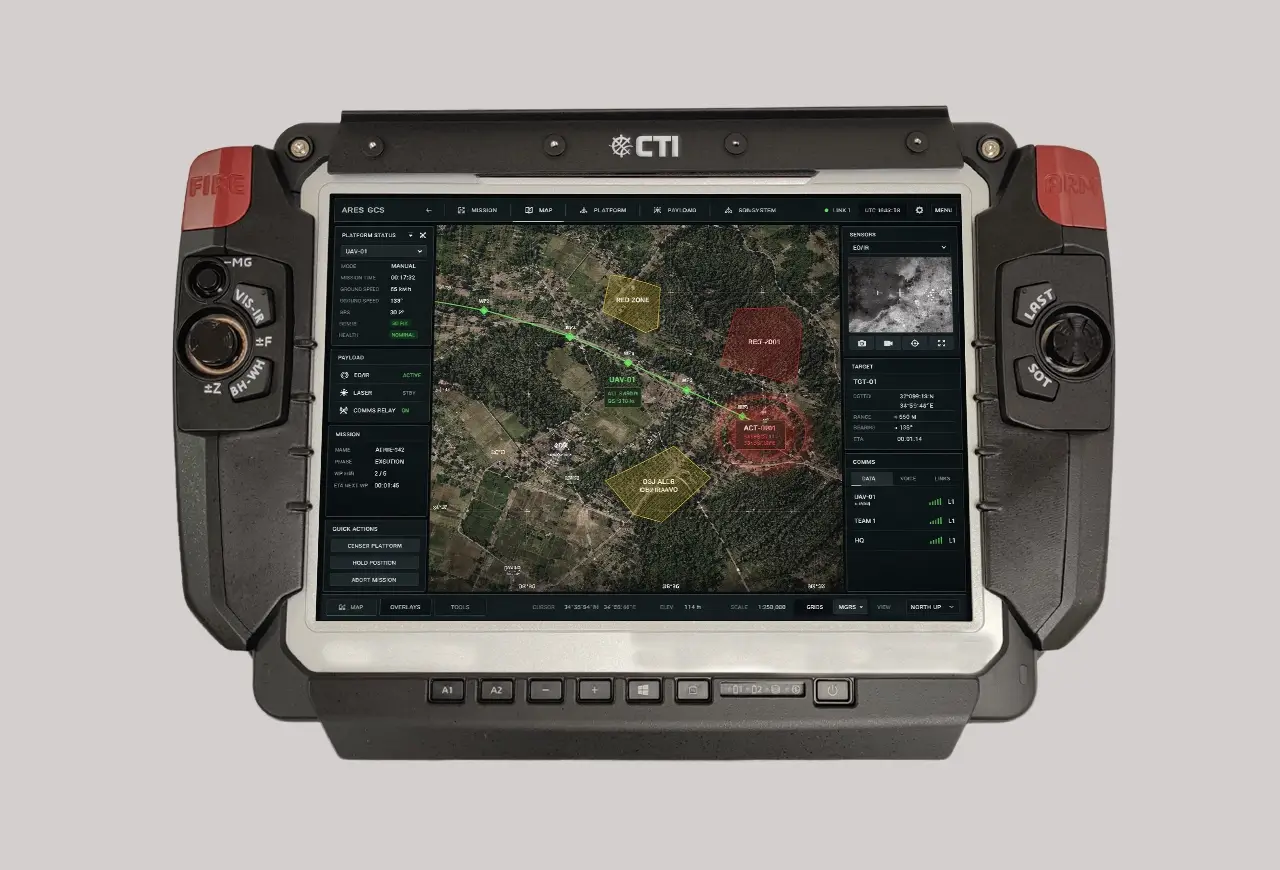

ares-12h-01

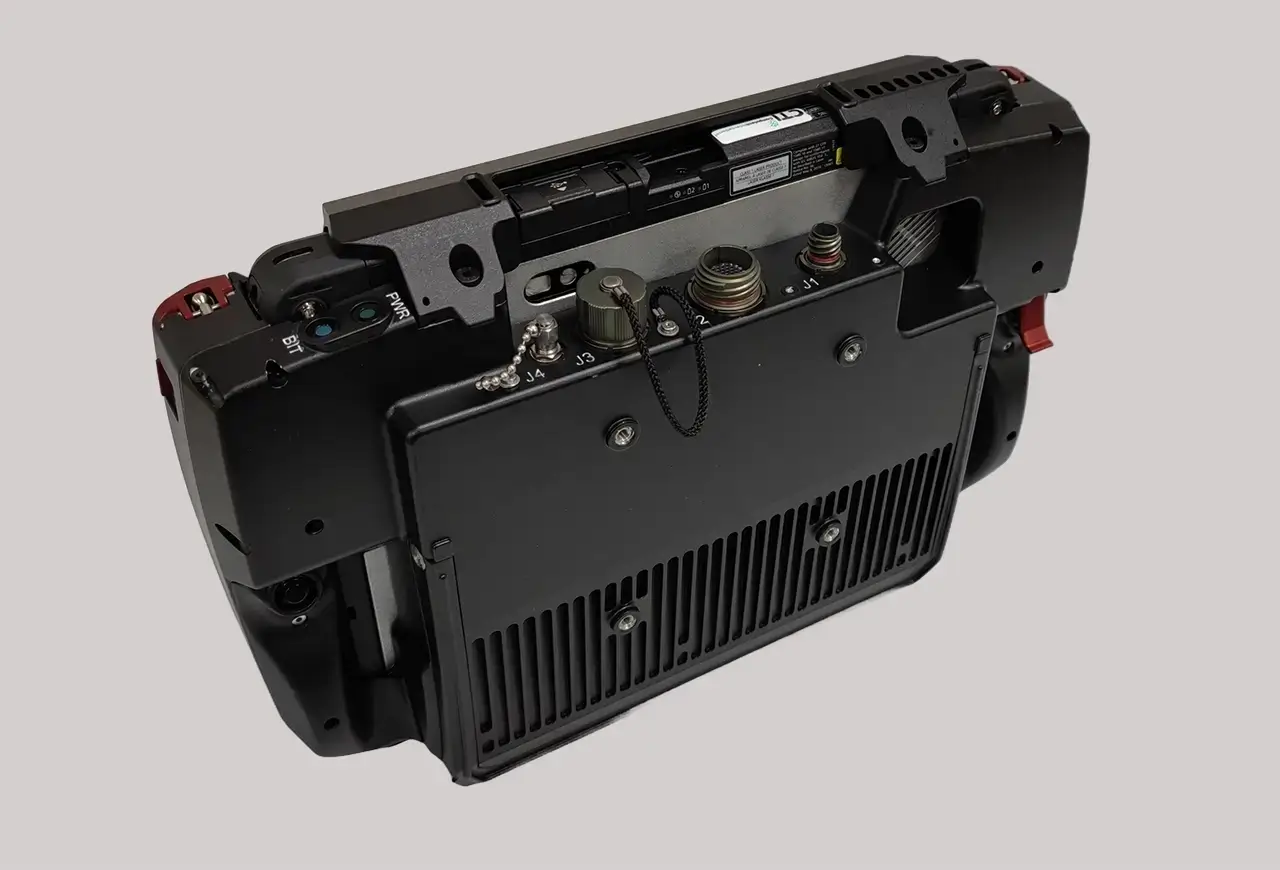

ares-12h-03-new

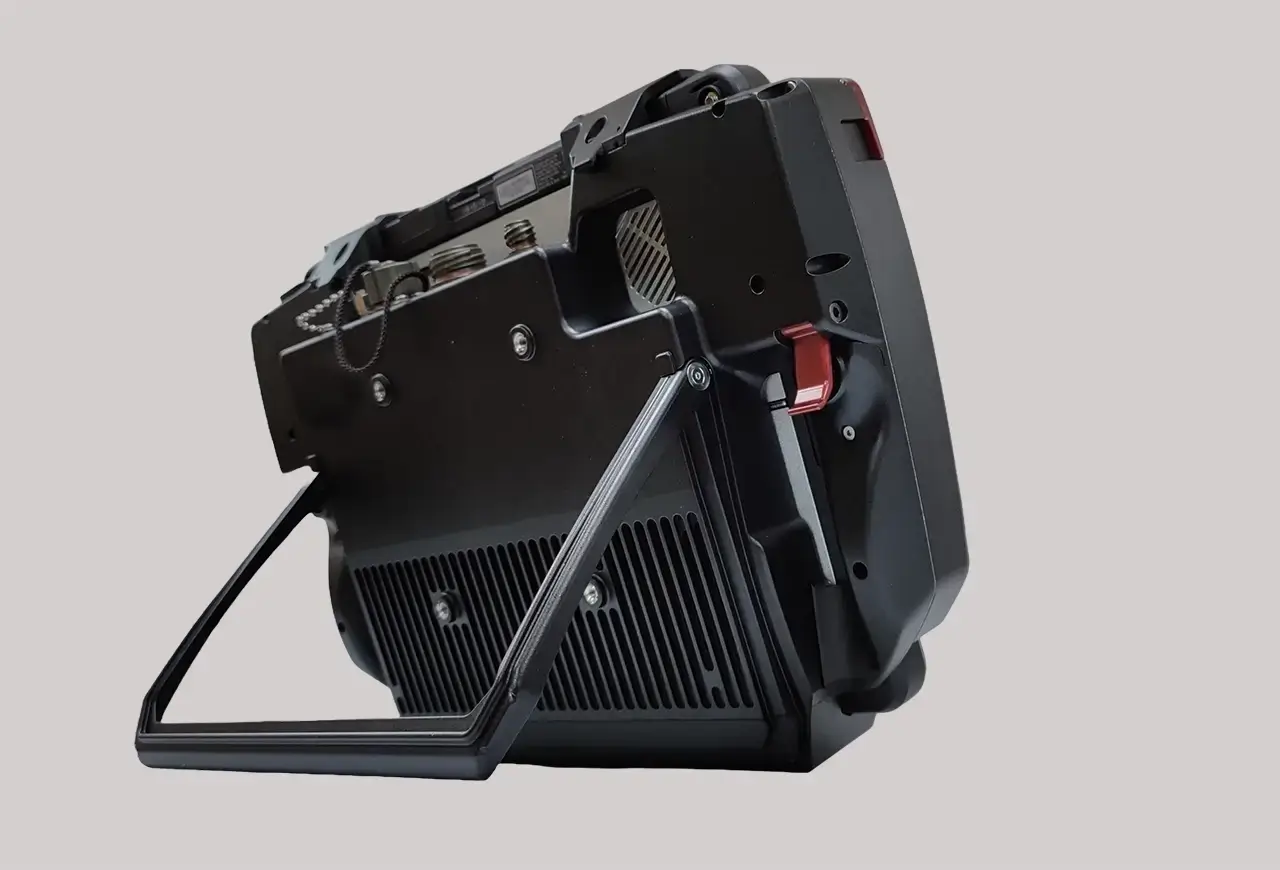

ares-12h-04-new

Mission-Ready Tactical Core

Specific engineering solutions designed to survive the modern battlefield.
Ruggedization
The Ares 12H is a compact, mission-ready platform built for demanding field operations. Featuring a high-brightness, sunlight-readable display, it delivers reliable performance in extreme environments (MIL-STD-810, MIL-STD-461, MIL-STD-1275 and IP65).
Ergonomic Design
The Ares 12H is designed with operator comfort and efficiency in mind. Its ergonomic layout reduces fatigue during extended missions and ensures intuitive control under high-stress conditions.
Flexible Control Layout
Interfaces can be tailored for specific operator workflows or mission types. The Areas 12H comes fully equipped with versatile interfaces to support complex mission requirements: USB, Ethernet switch (8 Ports), HDMI, Discrete I/O, RS232 and more.

Field Applications

The Ares 12H is designed for real-world, mission-critical field operations. Its durable construction, ergonomic design, and versatile interface options make it ideal for deployment in challenging environments where reliability and mobility are essential.
UAV / UAS
UGV / Robotics Operations
Command & Control App
Drones
Loitering Munitions

Technical Specifications

Ares 12H Detailed Data
System Performance
SpecificationValue
OSWindows® 11 Pro, Red Hat Enterprise Linux 9.4 & 10
CPU i5-1345U, i7-1370P vPro
Memory16GB, 32GB LPDDR4
Storage512GB, 1TB, 2TB Opal NVMe SSD
Display12"
Durability
SpecificationValue
High/Low Temperature-29°C to +60°C, MIL-STD-810H Method 501.7 Procedure I
HumidityMIL-STD-810H Method 507.6 Procedure II
VibrationMIL-STD-810H Method 514.8 Procedure I
Mechanical ShockMIL-STD-810H Method 516.8 Procedure I
Sand & DustMIL-STD-810H Method 510.7 Procedure I, II
RainMIL-STD-810H Method 506.6 Procedure I
EMI/RFIMIL-STD-461G
Ingress ProtectionIP65 (Dust/Water Jet)
Interfaces
SpecificationValue
Vehicle StandardMIL-STD-D38999
Power Input16-32VDC (D38999)
Ethernet10/100/1000 Mbps
Serial/VideoRS422, Composite Video In
ExpansionUSB 2.0, HDMI Out, JTAG, GPS, Discrete, Audio IN
Control Devices
SpecificationValue
JoysticksPAL-218, T5-MH2322
Push ButtonsP7-300105-2, P4-624121W
GuardCOM-11310
